What is the meaning of 1 set wire nail making machine

 What is the meaning of 1 set sets wire nail making machine? This question is very to answer. The wire nail making machine, understand from the word, just what a machine to making wire nail. But 1 set would become a complex wire nail making processing.
The 1 set wire nail making machine contains 3 main parts, wire drawing, nail making machine, and nail polishing. The other spare parts is nail knife, nail mould , pin punch , dies . The wire nail making machine system composes of these parts.

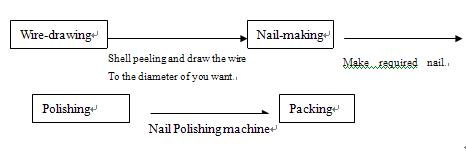

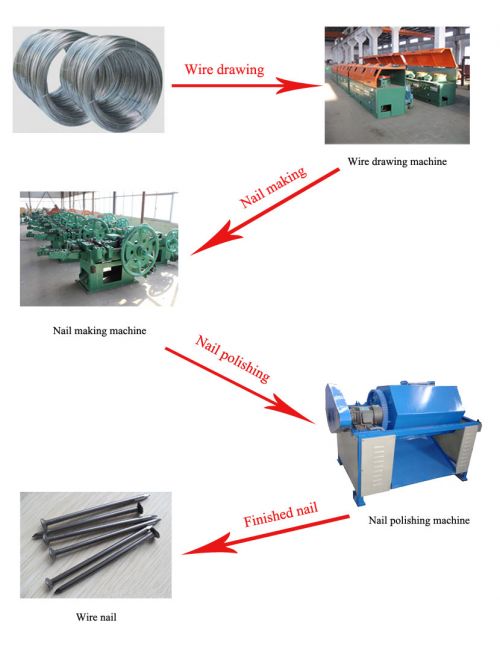

The 3 main machine of the wire nail making process:

Wire drawing machine: draw the raw material steel wire.

Nail making machine: to cut the steel wire into nails and make nails head.

Nail polishing machine: When the nails come from the nail making machine, it

is not so smooth and bright, to make it bright and have a good selling appearance;

It needs to be polished. Concerning for the polishing steps, firstly put the nail in the

polishing drum; Them put some saw dust onto the nails, then cover it and start the

machine , in general it needs 2 hours to completed .

Spare parts of the wire nail making process:

1. Nail knife: to cut the steel wire into different length such as 30mm, 45mm etc. The nail length can be adjusted from 5-10mm.

2. Nail mould: To clamp the steel wire for the nail knife to cut.

3. Pin punch: make nail head.

4. Dies for wire drawing machine.

Beside these parts, it would use this machine:

Sharpening mill: this machine is to sharpen the head of steel wire before it is feed into the wire drawing machine.

Nail knife grinder: because after 1-2 days cutting, the nail knife installed on the wire nail making machines will become blunt, then you can use the nail knife grinder to grind the nail knife to make it sharp again.

Butt welding machine: in case the wire breaks during drawing, you can use the butt welding machine to weld the broken wire together, and then continue the drawing. Without this machine, if the wire breaks, you need to sharpen the wire head again and do all things from the start.

Although the wire nail making is a complex making processing, it has many advantages, low cost, low noise , automatic lubrication , bearing structure and longer lifetime. it very meets customer’s demands.
