Two Side Ice Cream Stick Branding Machine

Double-sided two side ice cream stick branding machine is a wood product equipment that can hot character (brand) both sides of the ice cream stick.
The heating tube is heated, and the prefix begins to be hot. Impact-free working process can greatly improve work efficiency, processing quality and mold life. Easy to use, strong practicability, durable, good thermal effect, printed with a bumpy feeling.
Two Side Branding Machine
Introduction
Video
Details
Specification
Products
inquiry
Introduction

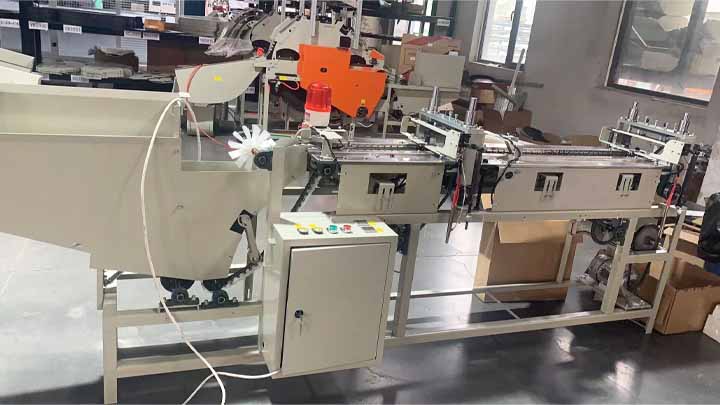

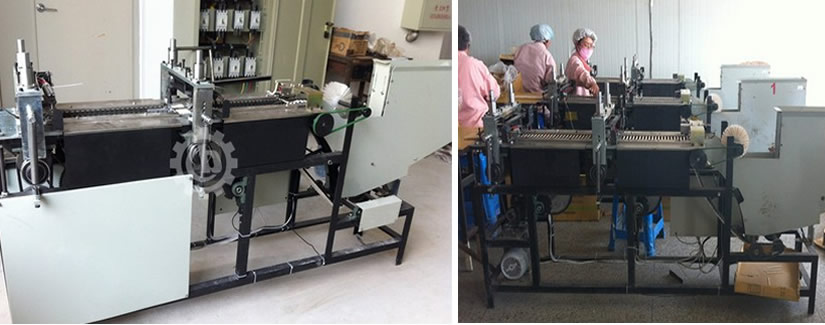

Two Side Ice Cream Stick Branding Machine
The two side ice cream stick branding machine has the advantages of accurate positioning, high efficiency, high output, low scrap rate, labor saving, more than one person can operate 10 machines at the same time, and can be directly formed after hot lettering.

When there is empty material under the mould, the mould will be lifted without repeated branding or empty smashing. There is an electromagnet next to the mould. When there is no ice cream stick in the transmission chain, the electromagnet will attract to prevent ice cream to prevent the stick repeat stamping.
Video
Two Side Ice Cream Stick Branding Machine
Details

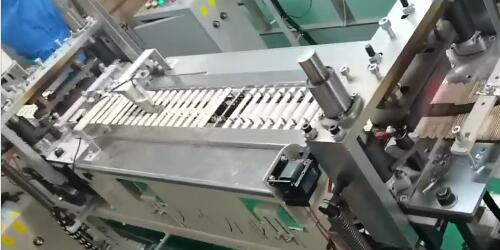

Double branding structure
The machine adopt two mould branding, one mould brand one side.

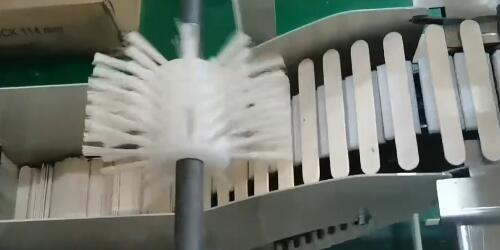

Automatic hopper feeding port
Big hopper with ice cream sticks, automatic feeding well.

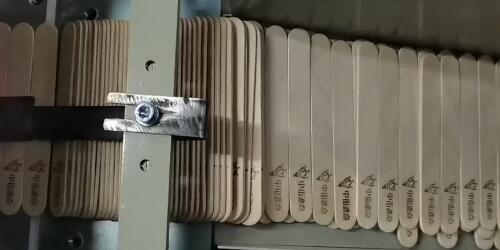

Discharge port
Discharge port is in good order, branding effect is great.

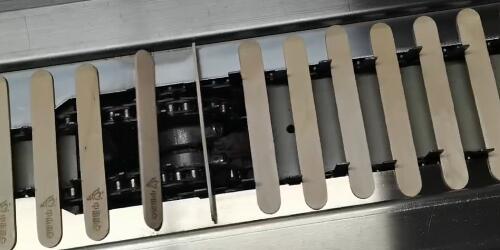

Back side flip part
Machine chain middle installed flip structure, can make stick another side.
Specification

Model

BLTY-2

Capacity

15000pcs/h.

Power

0.37kw.

Voltage

380V,3 phases, 50HZ

Dimension

2950*630*1200mm

Weight

300kg
