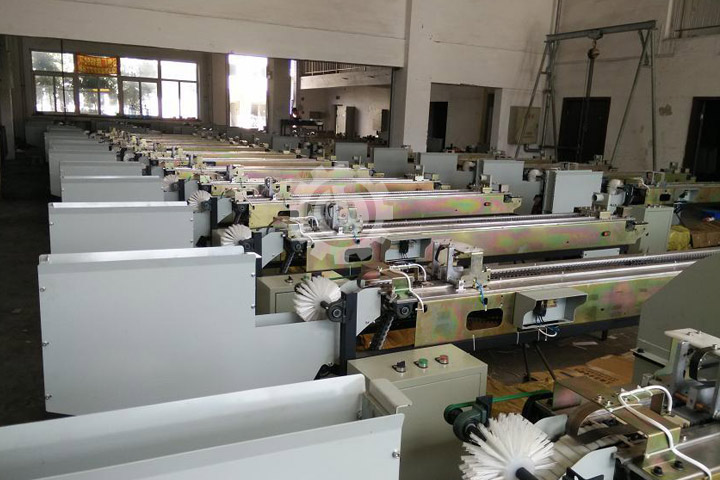

Wooden Magnum Selecting Machine

magnum selecting machine applies to check unqualified sticks, such as short sticks、narrow sticks、thin sticks and bend sticks. Meanwhile, it has a function to dust them.

Introduction

Wooden Magnum Selecting Machine

Wheel Type wood magnum selecting machine adopt no Chain design which do not need to add the grace compared with the last chain generation type.

Selecting Items:

a) Two ends narrow
b) Two ends thin
c) Less length
d) Lateral bending
e) Axial bending

Video

Wooden Magnum Selecting Machine

Feature

Beautiful machine appearance and color, compact structure.

Bad sticks discharge output by two different ports,easy to separate.

Bad sticks will be blow out automatically by the sensor and valve.

The machine moving parts covered by the safety cover and can observe.

Equipped with the air compressor air gun, can clean machine well.

Machine control panel and buttons, easy for workers to operate.

Send Inquiry

Send Email

Specification

Model	BSJX
Output	60,000 pcs/hour
Machine Dimension	21008001300mm
Packing Size	17608801250mm
Net Weight	220kg
Gross Weight	310kg
Voltage / Power	0.37 Kw / 380V,50HZ,three phases
